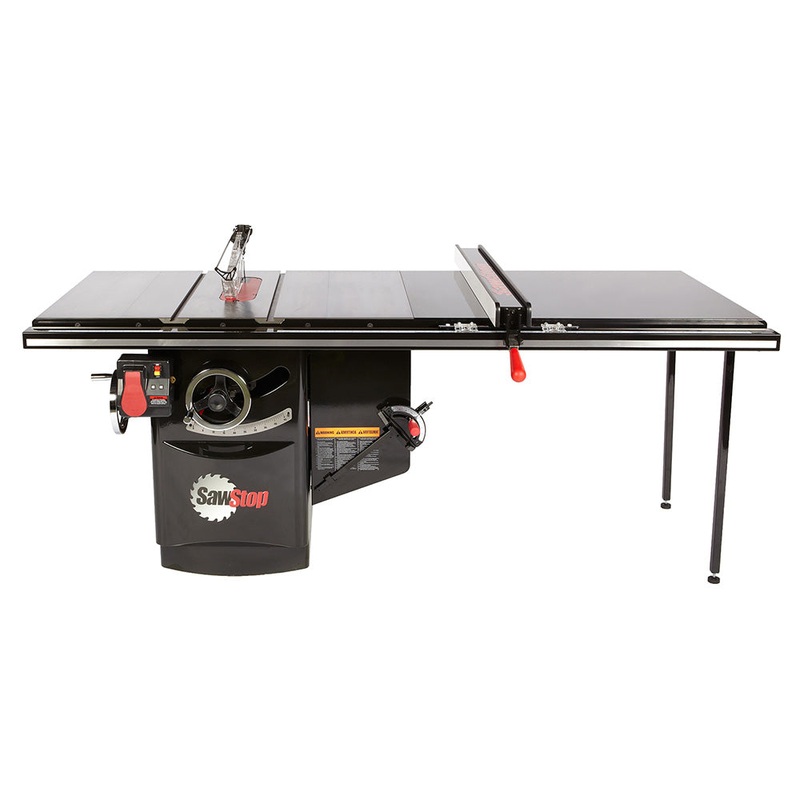

The SawStop Industrial Cabinet Saw is the definition of industrial grade. This 5hp cabinet saw is the heaviest, most powerful and highest quality 10″ cabinet saw available. The 1-phase, 230v motor configuration with a 52″ Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide. The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly. Multi-v-ribbed belts transfer motor power and provide more torque with less vibration. SawStop engineers have meticulously designed the under table assemblies for maximum performance. A gas piston carries the weight of the internal mechanism, allowing the operator to effortlessly raise or lower the blade. Additionally, the trunnions and motor are perfectly balanced for precise tilt adjustments. SawStop’s Industrial T-Glide Fence, made of durable steel, glides smoothly over the saw. It is infinitely adjustable and locks down solid. Multiple guide plates and the adjustable rail prevent rough/jerky movements commonly found with other fences. Pair with the optionalMobile Baseto maximize flexibility without forfeiting a reliably solid cutting surface! All SawStop Industrial Cabinet Saws come with a 2-year warranty, as well as a 5-year motor warranty. Only ships to continental 48 states – Not available for express or overnight shipping [TABS] Features Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments Largest table surface of any SawStop saw Cast iron trunnion Over-built arbor for strength and stability Bearings up to 50% larger than other saws SawStop Safety System stops on contact with skin (within 5 milliseconds!) 52″ Industrial T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection Specs Motor: 60Hz, TEFC, 5HP, 1 phase, 230v, 19.7AOverall saw dimensions: 85-1/4″ W x 36-1/2″ D x 34″ HCabinet footprint: 20″ W x 25″ DCast iron table: 24″ W x 30″ DCast iron table (w/ extension wings): 44″ W x 30″ DExtension wings: 10″ W x 30″ D eachExtension table: 40″ W x 30″ DApproximate assembled weight: 685 lbs.Approximate weight – table saw only: 530 lbs. Blade: 40-tooth Titanium, 5/8″ arborBlade diameter: 10″Blade tilt: LeftBlade kerf: 0.118″ (3mm)Blade plate thickness: 0.078″ (2mm)Max. depth of cut, blade at 0: 3-1/8″Max. depth of cut, blade at 45: 2-1/4″Max. rip, right of blade:52-1/2″ (w/ optional 52″ rails)Max. rip, left of blade: 12-1/2″ Dado diameter: 8″ (requires a separate brake cartridge and insert)Dado max. width: 13/16″Arbor diameter at blade: 5/8″Main bearing size: 62 mm OD x 30 mm IDSecond bearing size: 52 mm OD x 25 mm IDTable in front of blade (max. elevation): 10-3/4″Table behind blade (max. elevation): 10″Arbor Runout: 0.001″ Maximum allowable runoutTable flatness measured diagonally: 0.010″ Maximum gapBelts: 2 V-ribbed belts Blade alignment with miter slot: 0.010″ Maximum displacementDeviation of miter gauge indexing stops from actual: /- 0.25Alignment between splitter and blade: 0.010″ Maximum differenceMiter slots T-shaped: 3/4″ at top, 1″ at bottom, 3/8″ deepMiter slots center: 11-1/8″ center-to-centerMiter slots info: 5-1/2″ (arbor flange to center of right slot) Dust collection port diameter: 4″Dust collection blade guard: polycarbonate, extends only 1-3/16″ to right of bladeBlade guard (dust collection) port diameter: 1-1/2″ Outside, 1-1/4″ InsideInsert: zero clearance, phenolic core, melamine surfacesHand wheels: 8″ diameter, cast iron w/ chrome handleRiving knife / splitter thickness: 0.090″ (2.3 mm) Warranty: 2 years saw / 5 years motor Includes (2) Cast Iron Extension Wings (1) Miter Gauge (1) Dust Collection Blade Guard (1) Riving Knife (2) Blade Wrenches (1) Push Stick (1) 10″ Blade (1) Standard Brake Cartridge (1) Owner’s Manual (2) Hardware Packs (1) 3 mm Hex key (1) 5 mm Hex key (1) 8 mm Hex key (1) Blade Spacing Adjustment Guide Video [/TABS] Reviews There are no reviews yet. Be the first to review “Bessey Clutch Style Bar Clamps (GSCC Series)” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
